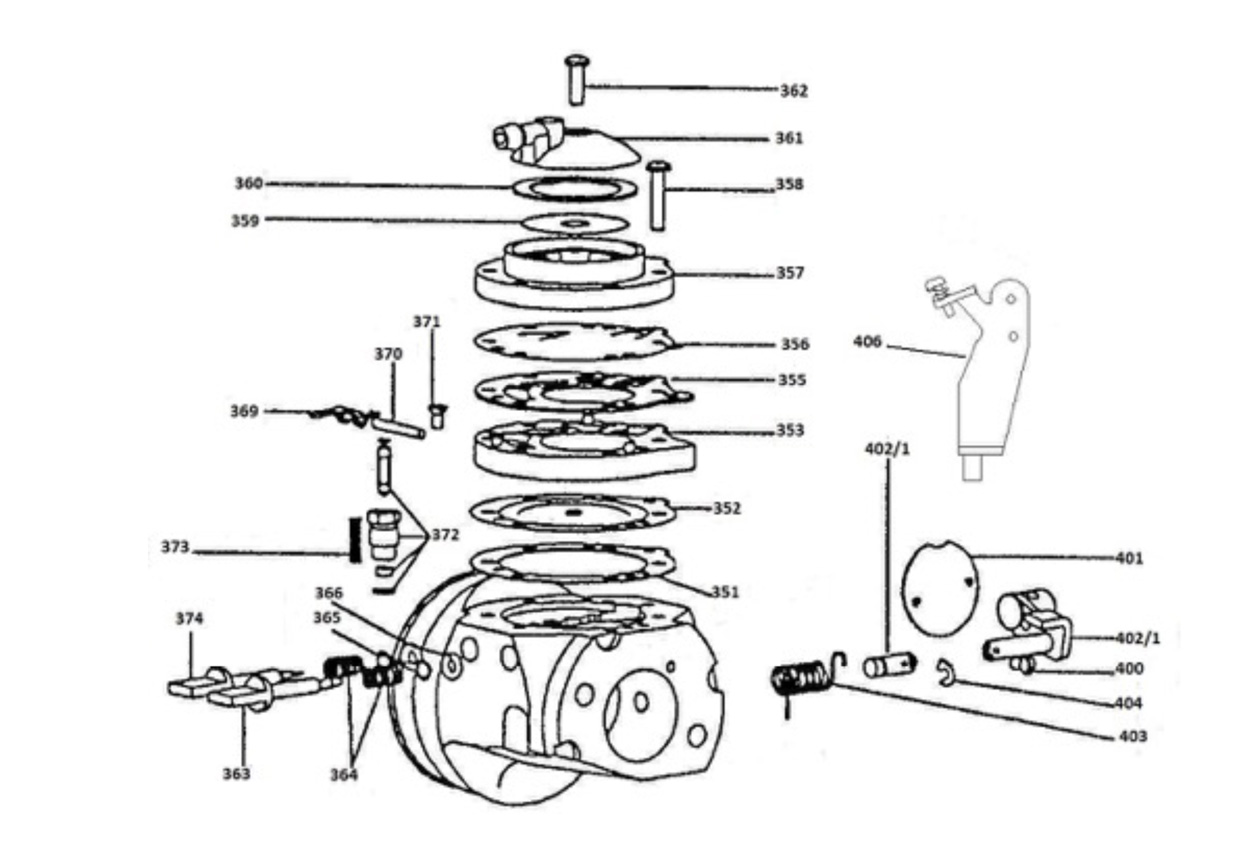

IBEA
| Pos. | Code | Description |
Diaphragm Gasket
| 351 | Diaphragm Gasket |
100mm Con-Rod
| 27101 | IAME 100mm Hifi Con-Rod pre 1982 |
Diaphragm
| 352 | Diaphragm |
Diaphragm Cover
| 353 | Diaphragm Cover |
Fuel Pump Gasket
| 355 | Fuel Pump Gasket |
Fuel Pump Diaphragm transparent
| 356 | Fuel Pump Diaphragm transparent |
Fuel Pump Body
| 357 | Fuel Pump Body |
Fuel Pump Screw
| 358 | Fuel Pump Screw |
Fuel Strainer Screen
| 359 | Fuel Strainer Screen |
Fuel Strainer Cover Gasket
| 360 | Fuel Strainer Cover Gasket |
Fuel Strainer Cover
| 361 | Fuel Strainer Cover |
Fuel Strainer Cover Ret. Screw
| 362 | Fuel Strainer Cover Ret. Screw |
Idle Mixture Screw L.
| 363 | Idle Mixture Screw L. |
Idle Mixture Screw Spring
| 364 | Idle Mixture Screw Spring |
Idle Mixture Screw Washer
| 365 | Idle Mixture Screw Washer |
Idle Mixture Screw Packing
| 366 | Idle Mixture Screw Packing |
Inlet Control Lever
| 369 | Inlet Control Lever |
Inlet Control Lever Fulcrum
| 370 | Inlet Control Lever Fulcrum |
Inlet Control Lever Screw
| 371 | Inlet Control Lever Screw |
Inlet Needle Seat & Gasket
| 372 | Inlet Needle Seat & Gasket |
Inlet Needle only
| 372 | Inlet Needle only |
Rubber for Inlet Needle Seat
| 186 | Rubber for Inlet Needle Seat |
Copper Washer for Needle Seat
| 124 | Copper Washer for Needle Seat |
Inlet Tension Spring 5/6/6,5/7 gr.
| 373 | Inlet Tension Spring 5/6/6,5/7 gr. |
High Speed Mixture Screw H
| 374 | High Speed Mixture Screw H |
Shutter L6 / L9 / F1/ F2
| 401 | Shutter L6 / L9 / F1/ F2 |
Shaft
| 402 | Shaft |
Special shaft with shutter F1
| 134 | Special shaft with shutter F1 |
Spring for Shaft
| 403 | Spring for Shaft |
404Shaft Clip
| 404 | 404Shaft Clip |
Support for Cable L6 / L9 / F1 /F2
| 406 | Support for Cable L6 / L9 / F1 /F2 |
Special nut M6
| 407 | Special nut M6 |
Kit Membrane
| 408 | Kit Membrane |
Kit complete
| 409 | Kit complete |
